Best Pop Up Electrical Outlets For Kitchen Counter Tops

A pop up outlet box is hidden in your countertop or floor when closed, all you see is a stylish stainless steel top. When you push the button the top tilts open revealing the GFCI outlet.

It can be installed in floor, countertop, deck, table, desk tops in kitchen, living room, office, public area, etc. Waterproof gasket features IP44 water rating.

Prior to installation, a professional cutter should cut a square hole in the desired location of the receptacle.
Junction Box Dimensions: 3.9*3.9*2.1 inches
Receptacle and Cover Dimensions: 4.7*4.7*2.7 inches (when closed)

Any excess wires should be pulled out of the box or made flat on the bottom of the box, to avoid interfering with the opening mechanism.

An additional plastic plate is provided to prevent the entry of dirt when installing the junction box. It can be removed when installing the outlet.

Install data: 1.You need a 11.8 inches of space under the cabinet when it is retracted 2.Drill a hole about 3.15’’±0.1’’ (8±0.2cm) diameter on the counter 3.The power strip with a power cord in the length of 6 ft. Use direction: 1.Once you push down, the top will pop up about an inch, then you physically pull the unit up to expose the outlets then you can plug in 2.When the charging is done, you can push the socket down, the top will be lying flat with the desk surface, just left you a clean and tidy desk’s surface

INSTALLATION STEP:
1. Prior to installation, a professional granite cutter should cut a square hole in the desired location of the receptacle, different location may need different size of the hole:
4 1/16″ X 4 1/16″ hole for the floor installation
3 9/16″ X 3 9/16″ hole for the countertop installation
2. Always use the supplied steel box, for the floor installation, secure the steel box on the bottom of the hole by the two screws provided. If you install on the countertop, it is unnecessary to secure the steel box at this step.
3. Run wire into the 1/2″ knock out the side of the box furthest away from the front of the countertop, if the knockouts are used closest to the front of the counter, the unit will not open because of interference.
Note: For the countertop installation, the steel box should be placed at the back of countertop. 4. Only use 9 or 10 gauge stranded U.L.listed wire, strip the wires and insert the stripped wire into the quick connect terminal box making sure that no striped wire is exposed, tighten the screws to secure the wires to the terminal block.
Note: Any excess wires should be pushed out of the box or made to be as flat as possible on the bottom of the steel box. Failure to push the wires out of the box or make it flat in the box will interfere with the opening mechanism and the unit will not be able to pop open.
5. Pop up the receptacle and line up the two screw holes with the thread holes in the steel box and then fasten by 2 screws provided.
6.Open and close the unit: Pulling the opening tab until the outlet completely open and close to the its lock place.

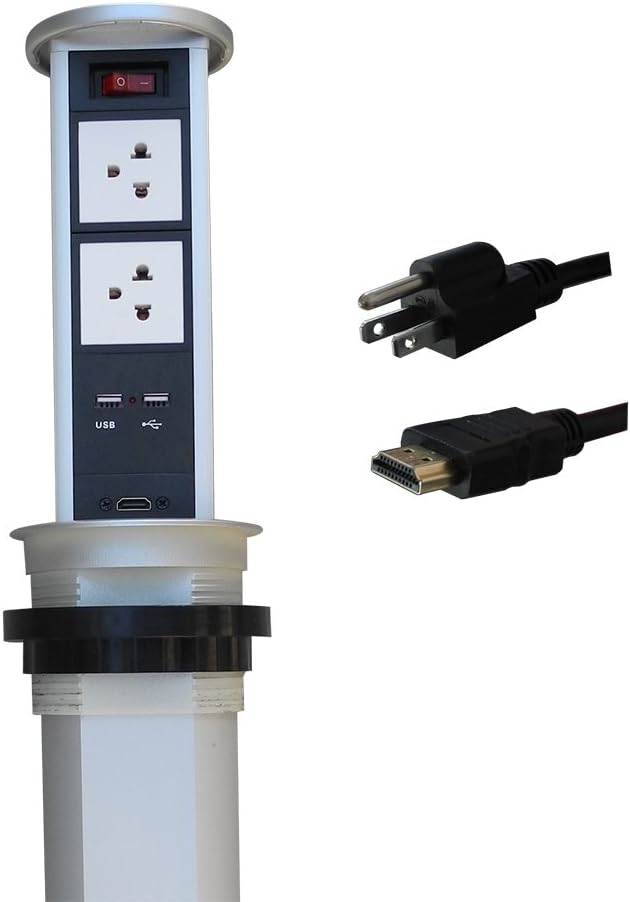

Product Detail:

Hight: 15 IN (38cm)
Diameter：4 IN (10cm)
Weight: 4 Pound（1.8KG）
Current: 10-13 A
Voltage: 125V ~ 250V
Power rating: 1000W
Power Cord length: 5.3 ft (160cm) 16 AGW

Install Detail：

1. Make sure there have 16’’ space before you cut a hole for it.
2. Use 4 inch hold saw to cut a hold size about 4’’.
3. Remove the ring from device and slide the body from top.
4. Slide the ring up from bottom and screw it tight.
5. Connect power cord with power source.

Use Direction:

When you need to use it, use your palm to push the surface, and pop up socket will raise up automatically.
When you don’t need to use any electronics, you can just push it back.

Need Customization?

We can provide all kind of ports like HDMI, CAT6, VGA, USB and other country power standard. Free to contract us about it.

Please cautious on hole size, the item might larger than your expect.

INSTALLATION STEP:
1. Prior to installation, a professional granite cutter should cut a square hole in the desired location of the receptacle, the size of the hole is 4-1/16″ X 4-1/16″
2. Always use the supplied steel box, for the floor installation, secure the steel box on the bottom of the hole by the two screws provided. If you install on the countertop, it is necessary to install the tab provided to the steel box, then use the construction adhesive or glue to attach the steel box to the countertop.
3. Run wire into the 1/2″ knock out the side of the box furthest away from the front of the countertop, if the knockouts are used closest to the front of the counter, the unit will not open because of interference.
Note: For the countertop installation, the steel box should be placed at the back of countertop. 4. Only use 9 or 10 gauge stranded U.L.listed wire, strip the wires and insert the stripped wire into the quick connect terminal box making sure that no striped wire is exposed, tighten the screws to secure the wires to the terminal block.
Note: Any excess wires should be pushed out of the box or made to be as flat as possible on the bottom of the steel box. Failure to push the wires out of the box or make it flat in the box will interfere with the opening mechanism and the unit will not be able to pop open.
5. Pop up the receptacle and line up the two screw holes with the thread holes in the steel box and then fasten by 2 screws provided.
6.Open and close the unit: Pulling the opening tab until the outlet completely open and close to the its lock place.

Product Detail:

Hight: 15 IN (38cm)
Diameter：4 IN (10cm)
Weight: 4 Pound（1.8KG）
Current: 10-13A
Voltage: 125V ~ 250V
Power rating: 1000W
Power Cord length: 5.3 ft (160cm)

Install Detail:

1. Make sure there have 16’’ space before you cut a hole for it.
2. Use 4 inch hold saw to cut a hold size about 4’’.
3. Remove the ring from device and slide the body from top.
4. Slide the ring up from bottom and screw it tight.
5. Connect power cord with power source.

Use Direction:

When you need to use it, use your palm to push the surface, and pop up socket will raise up automatically.
When you don’t need to use any electronics, you can just push it back.

Need Customization?

We can provide all kind of ports like HDMI, CAT6, VGA, USB and other country power standard. Free to contract us about it.

Please cautious on hole size, the item might larger than your expect.

Retractable Power Solution for Kitchen Worktops

Jgstkcity pop up power strip is perfect for any countertop location, as well as kitchen islands. It can also be used for charging mobile devices such as tablets and phones with an appropriate adapter.

Specifications:

Operating Voltage: 120v

Power Rating: 12 Amps

Cable Length: 1.9 Metres

Material: PC Flame-resistant material

Socket Type: 3x US Mains Sockets, 2x USB Charge Sockets

UL listed receptacle, # E307811

Bezel size:  3.1” round

Cutout size:  2.5″-3” round

Pop up height:  8.26”

Depth:  12″

Designed for indoor installations only

Easy Installation – Cut the Hole and Plug In

• The in-counter outlet only needs a 2.5″round hole cut in the countertop.
• After placing the unit in the hole, secure to the underside of the counter with the included threaded flange.
• To supply power to the pulling pop up, simply plug the end of the cord into a outlet. Lastly, install the included trim ring, and installation is complete.

This device is perfect for you if you have lots of electronic devices that need charging, as well as for those who foster a love of order and organization.

Install data: 1. You need a 12 inches of space under the cabinet when it is retracted 2. Drill a hole with9 diameter on the counter 3. The power strip with a power cord in the length of160 cm use direction: 1. Once you push down, the top will pop up about an inch, then you physically pull the unit up to expose the outlets then you can plug in 2. When the charging is done, you can push the socket down, and the top will be lying flat with the desk surface, just left you a clean and tidy desk’s surface package content: 1*pop up socket with power cord(160cm in length)

INSTALLATION STEP:
1. Prior to installation, a professional granite cutter should cut a square hole in the desired location of the receptacle, different location may need different size of the hole:
4 1/16″ X 4 1/16″ hole for the floor installation
3 9/16″ X 3 9/16″ hole for the countertop installation
2. Always use the supplied steel box, for the floor installation, secure the steel box on the bottom of the hole by the two screws provided. If you install on the countertop, it is unnecessary to secure the steel box at this step.
3. Run wire into the 1/2″ knock out the side of the box furthest away from the front of the countertop, if the knockouts are used closest to the front of the counter, the unit will not open because of interference.
Note: For the countertop installation, the steel box should be placed at the back of countertop. 4. Only use 9 or 10 gauge stranded U.L.listed wire, strip the wires and insert the stripped wire into the quick connect terminal box making sure that no striped wire is exposed, tighten the screws to secure the wires to the terminal block.
Note: Any excess wires should be pushed out of the box or made to be as flat as possible on the bottom of the steel box. Failure to push the wires out of the box or make it flat in the box will interfere with the opening mechanism and the unit will not be able to pop open.
5. Pop up the receptacle and line up the two screw holes with the thread holes in the steel box and then fasten by 2 screws provided.
6.Open and close the unit: Pulling the opening tab until the outlet completely open and close to the its lock place.

There’s no neater way of ensuring you have enough sockets around you when you’re working or cooking. Featuring 2 grounded outlets, 2 USB ports, and a sleek stainless-steel finish, Link2Home’s Pop-Up Socket is the only one of its kind that lets you choose between pulling up the entire socket or just the USB ports, according to your needs. Save more space, while getting easier access to the power outlet with the new Link2Home Pop Up Power Socket. A pop-up solution to the messy cables and inconvenient when trying to connect your devices. Perfect for stationery accessories like night lamps, computers, and different conference devices, leaving more space for temporary devices like laptops, tablets, and mobile phones. Power and charge up to 4 devices (2 AC Outlets, 2 USB Ports 2.4A fast charge) simultaneously right from your desk or kitchen counter.
